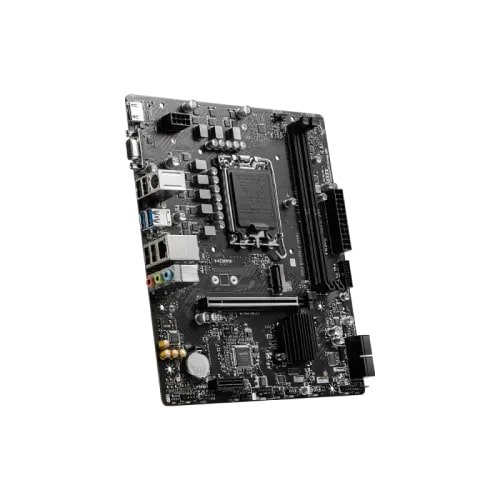

MSI PRO B760M-E DDR4 12th Gen & 13th Gen mATX Motherboard

Quick Overview

  • Model: PRO B760M-E DDR4
  • Supported CPU: 12th/13th Gen Intel Processors (LGA1700)
  • Supported RAM: 2x DDR4, Max 128GB 4800(OC)
  • Graphics Output: 1x HDMI, 1x VGA
  • Features: 1x M.2 slot, Realtek RTL8111H Gigabit LAN

৳ 13,700.00
Availability: In stock
Email to a Friend:

Description

Specification
BrandMSI
ModelPRO B760M-E DDR4
Supported CPUSupports 12th/13th Gen Intel Core Processors, Pentium Gold and Celeron Processors
LGA 1700
ChipsetINTEL B760
Form FactormATX
200mmx236.16mm
AudioRealtek ALC897 Codec
7.1-Channel High-Definition Audio
Expansion Slots
PCI1x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 Gen PCIe 4.0 supports up to (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to (From Chipset)
Memory
TypeDDR4
Slots2
Supported Memory4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC)
Max. overclocking frequency:
• 1DPC 1R Max speed up to 4800+ MHz
• 1DPC 2R Max speed up to 4600+ MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel Extreme Memory Profile (XMP)
Maximum Memory64GB
Graphics
Graphics1x HDMI
Support HDMI 1.4 with HDR, the maximum resolution of 4K 30Hz
1x VGA
Support VGA, maximum resolution of 2048×1536 50Hz, 2048×1280 60Hz, 1920×1200 60Hz
Connector & Ports
HDMI1x HDMI
VGA (s)1x VGA
USB (s)4x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 3.2 Gen1 Type A (Rear)
2x USB 3.2 Gen1 Type A (Front)
LAN Port (s)Realtek RTL8111H Gigabit LAN
Supported Storage1x M.2
M.2_1 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
4x SATA 6G
RAIDSupports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
AudioAudio Connectors
Internal I/O Ports1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR)
1x CPU Fan
2x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
1x RGB LED connector(JRGB)
2x USB 2.0 ports
1x USB 3.2 Gen1 Type A ports
TPM (Trusted Platform Module )1x TPM pin header(Support TPM 2.0)
Others
Special Features4x EZ Debug LED
Warranty Information
Manufacturing Warranty3 Years Warranty
