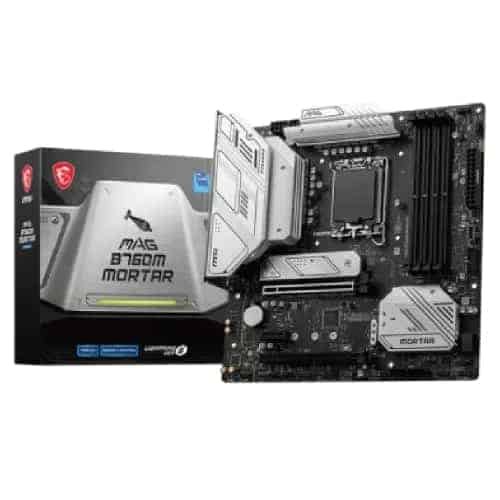

MSI MAG B760M MORTAR DDR5 12th Gen & 13th Gen mATX Motherboard

Quick Overview

  • Model: MAG B760M MORTAR
  • Supported CPU: 12th/13th Gen Intel Processors (LGA1700)
  • Supported RAM: 4x DDR5, Max 192GB 7000+(OC)
  • Graphics Output: 1x HDMI, 1x DisplayPort
  • Features: 2x M.2 slot, Intel Wi-Fi 6E

৳ 26,500.00
Availability: In stock
Email to a Friend:

Description

Specification
Brand MSI
Model MAG B760M MORTAR DDR5
Supported CPU Supports 12th/13th Gen Intel Core Processors, Pentium Gold and Celeron Processors
LGA 1700
Chipset INTEL B760
Form Factor mATX
243.84mmx243.84mm
Audio Realtek ALC897 Codec
7.1-Channel High-Definition Audio
Expansion Slots
PCI 2x PCI-E x16 slot
Supports x16/x4
1x PCI-E x1 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
Memory
Type DDR5
Slots 4
Supported Memory Support 7000+(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Max speed up to 7000+ MHz
• 1DPC 2R Max speed up to 6600+ MHz
• 2DPC 1R Max speed up to 6400+ MHz
• 2DPC 2R Max speed up to 5600+ MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel Extreme Memory Profile (XMP)
Maximum Memory 192GB
Graphics
Graphics Support HDMITM 2.1 with HDR, the maximum resolution of 4K 60Hz
Support DP 1.4, the maximum resolution of 4K 60Hz
Connector & Ports
HDMI 1x HDMI
Display Port (s) 2x DisplayPort
USB (s) 4x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 3.2 Gen1 Type A (Front)
3x USB 3.2 Gen2 Type A (Rear)
1x USB 3.2 Gen2 Type C (Front)
1x USB 3.2 Gen2x2 Type C (Rear)
LAN Port (s) Realtek 2.5Gbps LAN
Supported Storage 2x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
4x SATA 6G
RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Audio 1x Front Audio (JAUD)
Internal I/O Ports 1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
4x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x TBT connector (JTBT, supports RTD3)
1x Tuning Controller connector(JDASH)
2x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
4x USB 2.0 ports
2x USB 3.2 Gen1 Type A ports
1x USB 3.2 Gen2 Type C ports
TPM (Trusted Platform Module ) 1x TPM pin header(Support TPM 2.0)
Others
Special Features 4x EZ Debug LED
Warranty Information
Manufacturing Warranty 3 Years Warranty
